Material: Steel
Surface: H.D.GALV
Produced according to DIN766 short link chain standard, it is precisely calibrated for smooth and secure engagement with windlass gypsies. The uniform link dimensions guarantee stable running, reduced wear on windlass components, and improved anchoring reliability.
The heavy hot dip galvanized layer provides long-term resistance against rust, abrasion, and saltwater exposure, making it a highly cost-effective solution for both recreational and commercial vessels.
![]()

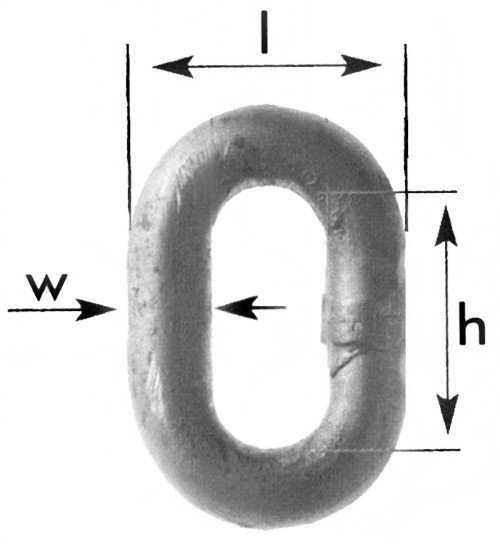

| Code | Dia. | Pitch | Outer width |
| 01121404-HV | 4mm | 16mm | 13.7mm |
| 01121405-HV | 5mm | 18.5mm | 17mm |
| 01121406-HV | 6mm | 18.5mm | 20.2mm |
| 01121408-HV | 8mm | 24mm | 27.2mm |
| 01121410-HV | 10mm | 28mm | 34mm |
| 01121410-ISO | 10mm | 30mm | 34mm |
| 01121413-HV | 13mm | 36mm | 44.2mm |
| 01121416-HV | 16mm | 45mm | 54.4mm |
| 01121420-HV | 20mm | 56mm | 68mm |
| 01121423-HV | 23mm | 64mm | 78.2mm |
| 01121426-HV | 26mm | 73mm | 88.4mm |
