Black Standard Portlight
Frame Material: Aluminium Alloy
Surface: Black Anodized
Glass Material: Smoke Color Acrylic
Handle Material: Nylon
Features a black anodized aluminum surface with excellent wear resistance, anti-slip performance, and long-lasting color stability. The durable finish is ideal for demanding marine environments while maintaining a premium, modern look.
The second-generation handle provides a stronger grip, improved structural strength, and enhanced sealing, ensuring reliable performance. Its sleek black design is perfect for sport-style boats, yachts, and dark-hulled vessels, combining functionality with refined aesthetics.
| BLACK | Frame Size | Cut-out Size | Height | Deck Thickness | ||||
| a | b | c | d | |||||
| MM | In | MM | In | MM | In | MM | In | |

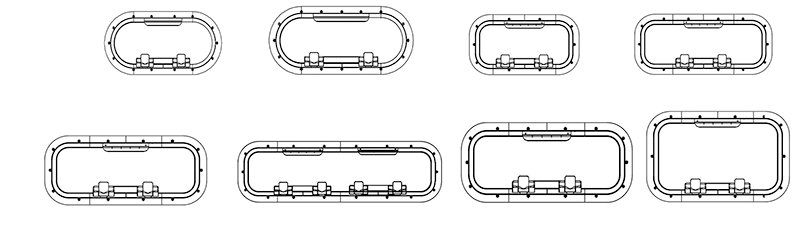

| Oval | ||||||||
| 12-03109B 12-03101B | 397*197 | 15.6*7.8 | 375*175 | 14.8*6.9 | 44 | 1.7 | 31 | 1.2 |
| 367*197 | 14.4*7.8 | 345*175 | 13.6*6.9 | 44 | 1.7 | 31 | 1.2 | |
Rectangular | ||||||||
| 12-03110B | 325x178 | 12.8x7 | 303x156 | 11.9x6.1 | 44 | 1.7 | 31 | 1.2 |
| 12-03130B | 369x193 | 14.5x7.6 | 347x171 | 13.7x6.7 | 44 | 1.7 | 31 | 1.2 |
| 12-03115B | 451x193 | 17.8x7.6 | 429x171 | 16.9x6.7 | 44 | 1.7 | 31 | 1.2 |
| 12-03135B | 649×193 | 25.6x7.6 | 627x171 | 24.7x6.7 | 44 | 1.7 | 31 | 1.2 |
| 12-03120B | 451x266 | 17.8x10.5 | 429x244 | 16.9x9.6 | 44 | 1.7 | 31 | 1.2 |
| 12-03125B | 369x273 | 14.5x10.7 | 347x251 | 13.7x9.9 | 44 | 1.7 | 31 | 1.2 |
