PRODUCTS
Round Deck Hatch
Frame Material: Aluminium Alloy
Surface: Anodized
Glass Material: Smoke Color Acrylic
Handle Material: Nylon
This marine hatch features a natural anodized aluminum surface, providing excellent wear resistance, anti-slip performance, and corrosion protection. The anodized finish has passed salt spray and water-tightness tests and is CE certified for reliable performance in demanding marine environments.
With a neutral, versatile design, it is suitable for all types of boats and a wide range of marine and general applications.

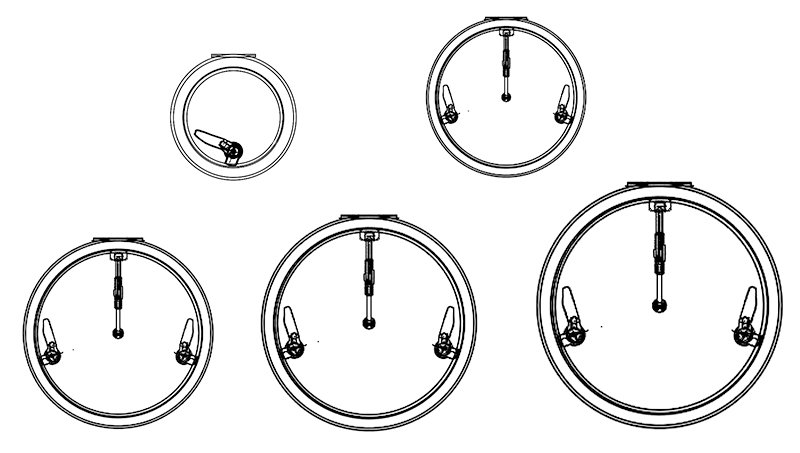

| Code | Frame Size | Cut-out Size | Height | Deck Thickness | ||||||||
| a | b | c | d | |||||||||
| MM | In | MM | In | MM | In | MM | In | |||||
| 12-03028 | φ343 | 13.5 | φ278 | 10.9 | 42.5 | 1.8 | 15 | 0.6 | ||||
| 12-03032 | φ383 | 15 | φ318 | 12.5 | 42.5 | 1.8 | 15 | 0.6 | ||||
| 12-03042 | φ485 | 19 | φ420 | 16.5 | 42.5 | 1.8 | 15 | 0.6 | ||||
| 12-03048 | φ545 | 21.4 | φ480 | 18.9 | 42.5 | 1.8 | 15 | 0.6 | ||||
| 12-03052 | φ587 | 23.1 | φ522 | 20.5 | 42.5 | 1.8 | 15 | 0.6 | ||||
